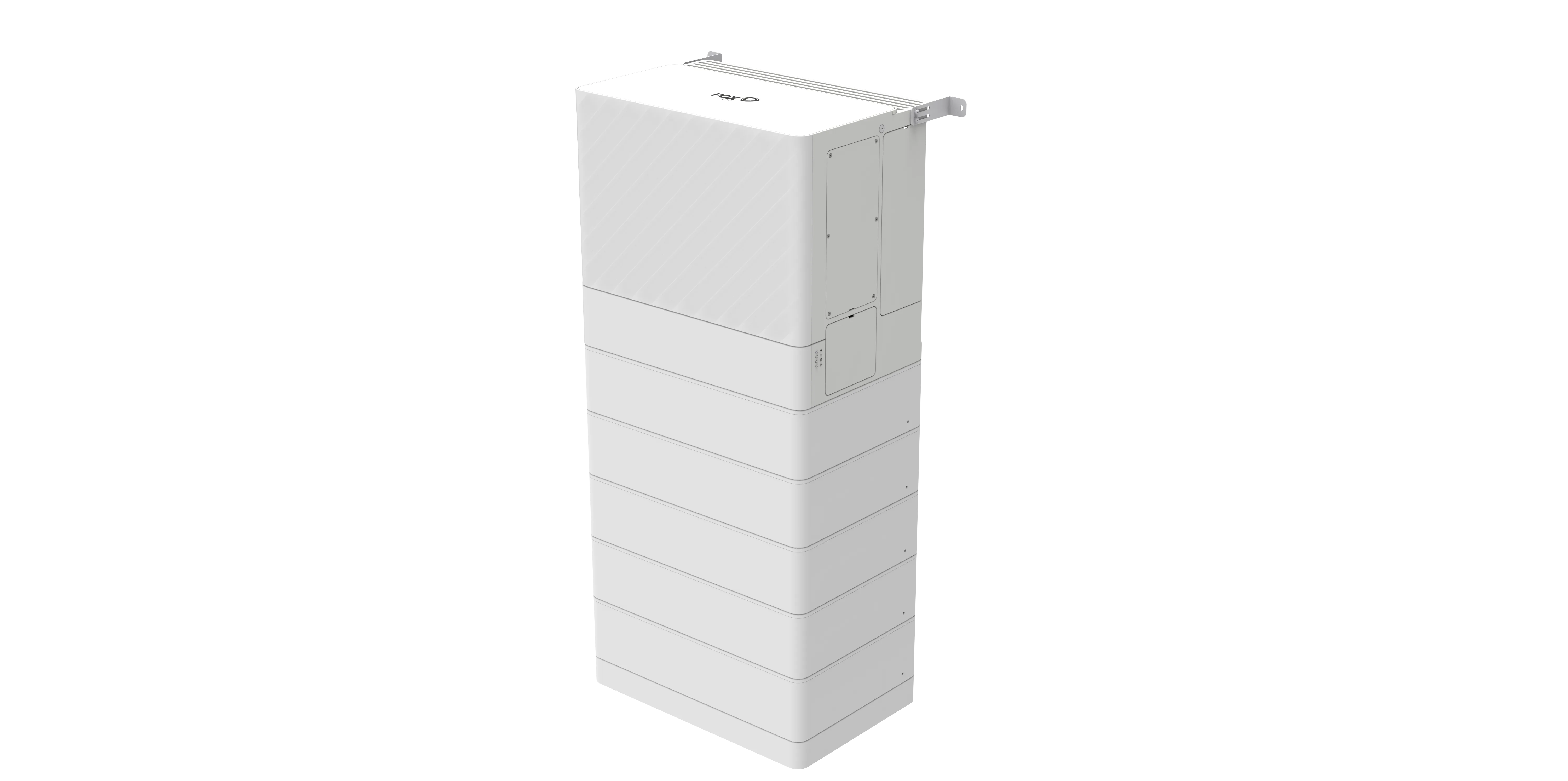

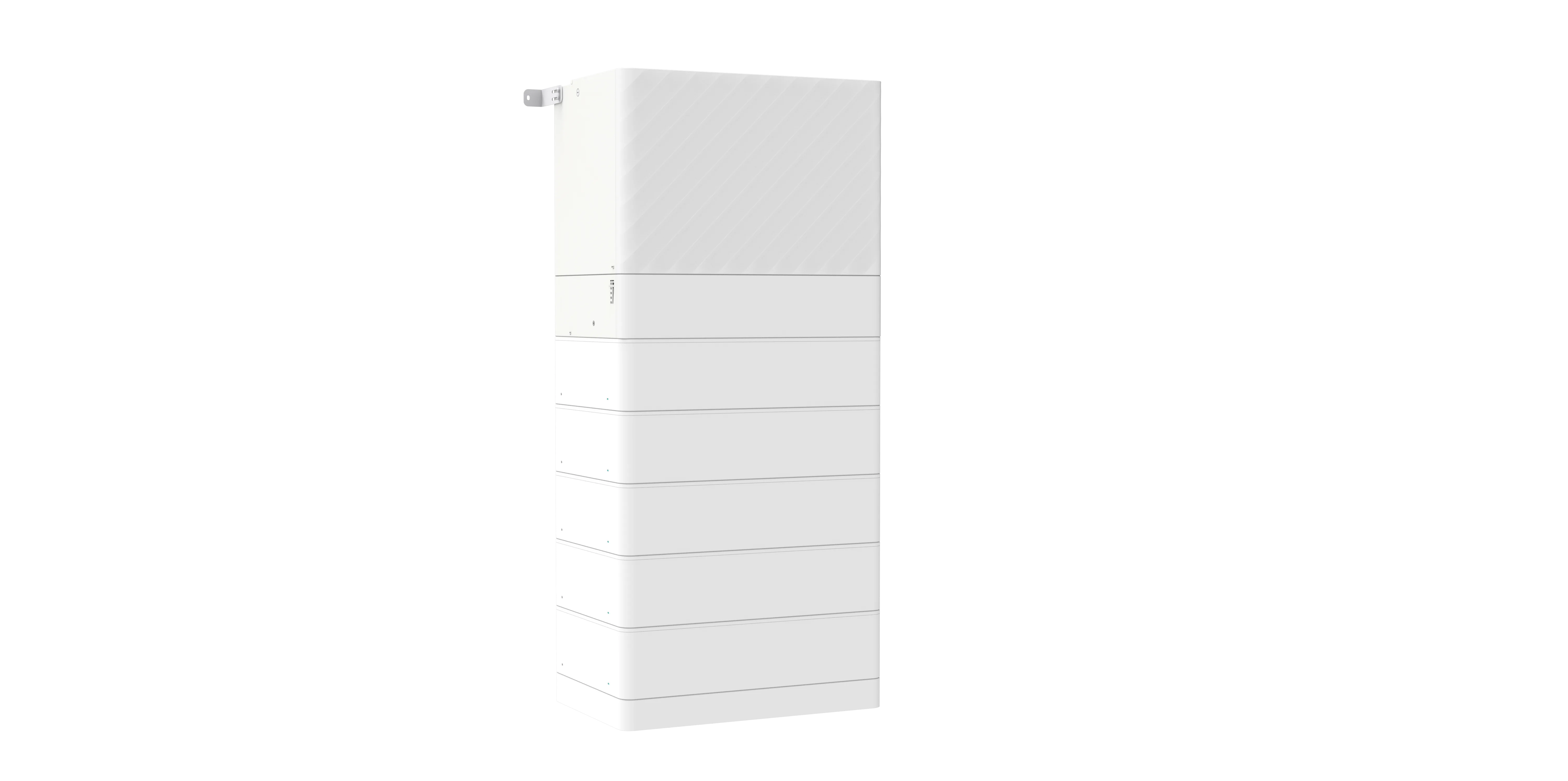

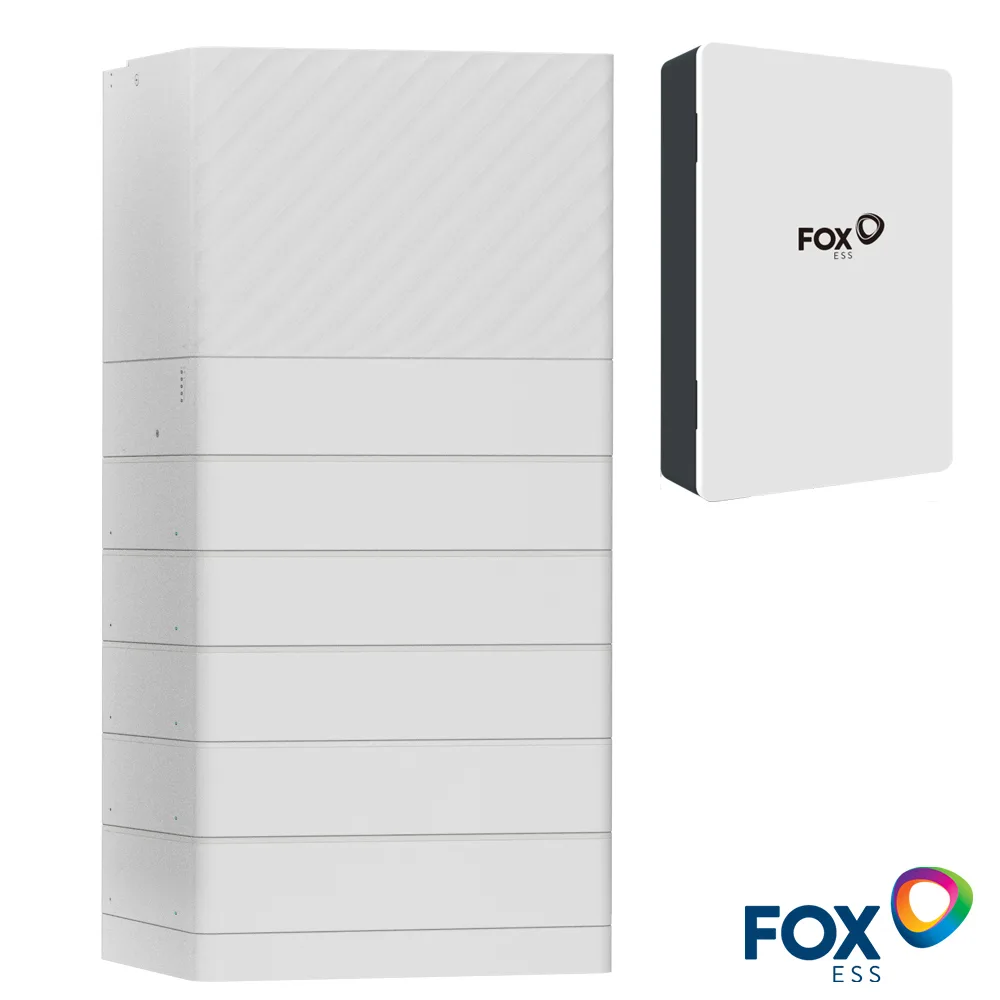

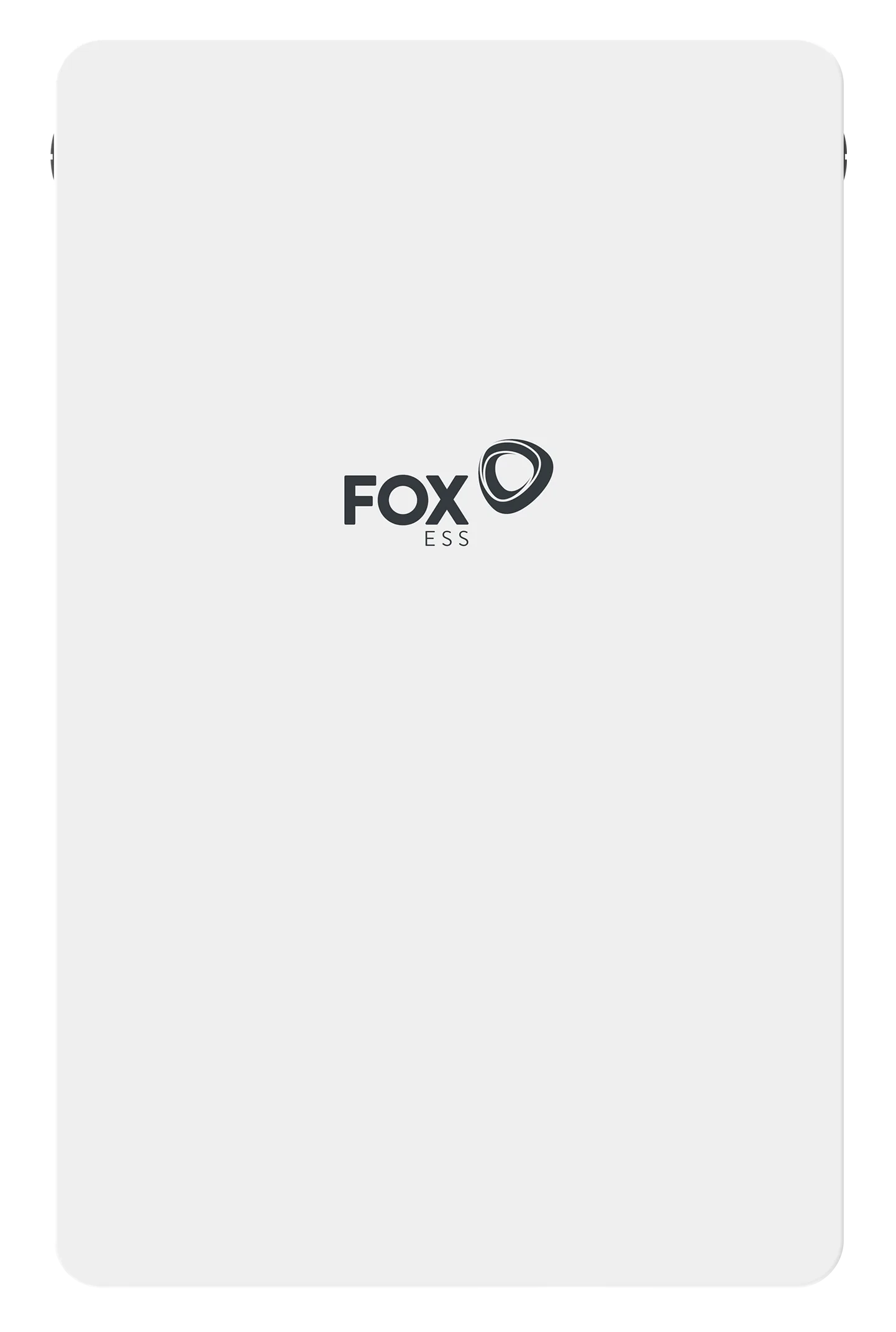

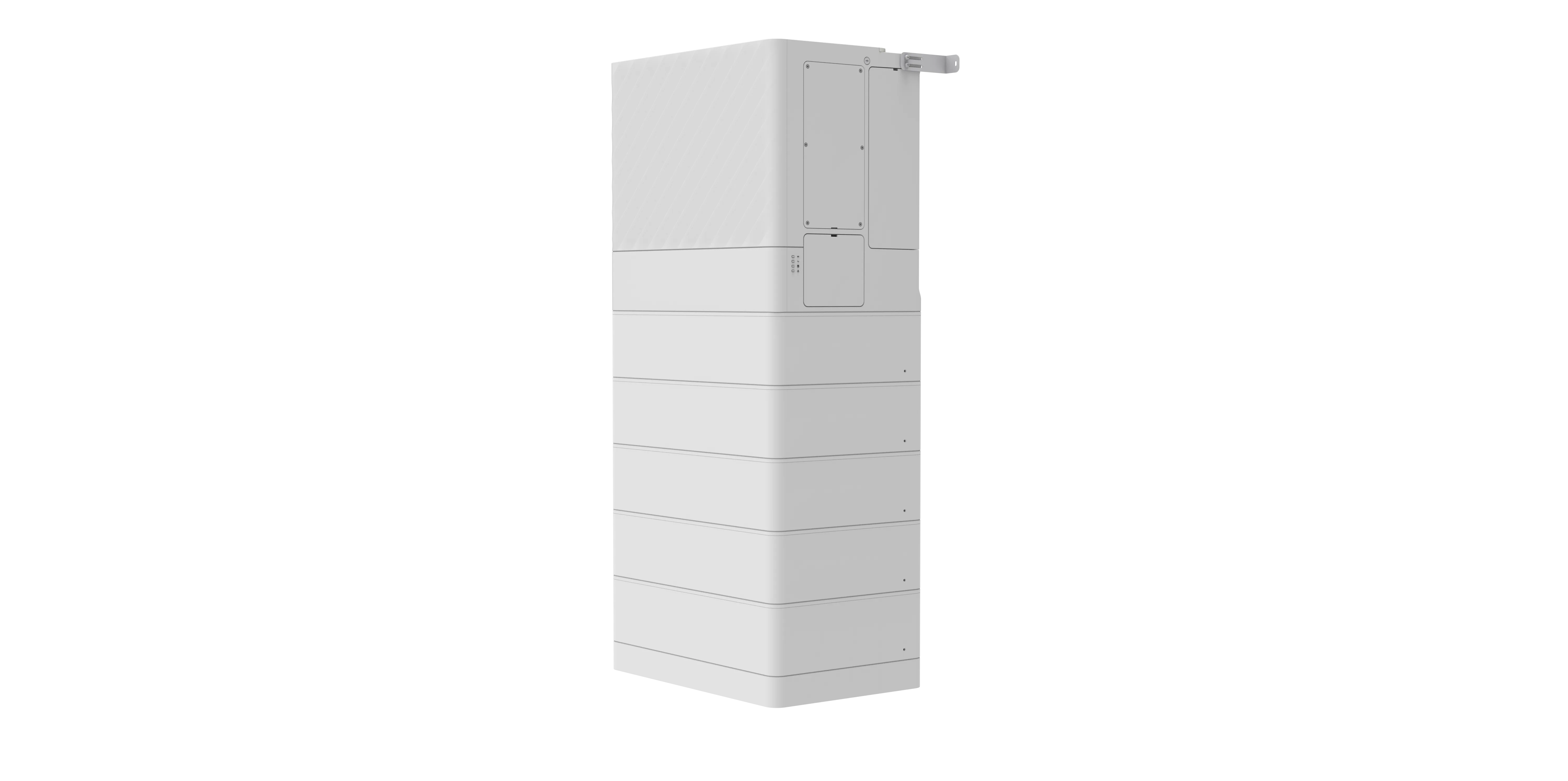

The Fox PowerQ energy storage system is a whole home energy solution for residential users. The three key components are Fox PowerQ which can convert solar energy to AC energy and store energy into battery, and FOX Hub G2 which is an energy management unit for whole-home power control. Users can monitor and operate their storage system remotely via the FoxCloud US mobile phone app.Fox ESS PowerQ is the latest generation of an integrated residential energy storage system. With up to 80kWh total backup capacity, PowerQ is designed to meet various backup scenarios via modular system design and scalability.
Product Overview
Total energy 11.91kWh
Module Qty 1 Hybrid inverter+3 Battery modules + 1 Base
Max. Continuous power 11.4kW
Max. Output power Without PV 8.64W
Max. solar STC power 22.8kWv
Max. PV input voltage 600V
Easy Scalable Max to 5 Modules up to 19.85kWh
Dimensions(W*H*D) 22.4**38.8*15 inch (570*986*380 mm)
Weight Inverter: 112.44 lbs/51 kg Battery module: 81.35 lbs/36.9 kg Base: 7.72 lbs/3.5 kg Total:364.2 lbs/165.2 kg
Mounting Ground mount
Safety and EMC UL9540A, UL9540, UL1973, UL1741 SA, UL 1741 SB, UL1741 CRD, CSA C22.2 No.107.1-16, UL1998, UL1699B, HECO SRD-V2.0; IEEE1547-2018, IEEE1547a-2020, IEEE1547.1-2020, Rule21; FCC part15 CLASS B
Warranty 12.5 Years
Key Features- Hybird PV Input Up to 22.8kW per PowerQ
- LFP Battery, Up to 20kWh per PowerQ
- Scalable Up to 4 Units, Totally Up to 80kWh Backup Capacity
- Both Wi-Fi & 4G Communication Available
- LRA Up to 110A
- Multiple Energy Operation Modes
- Compatible with Generator with Fox Hub G2
Product Specifications- Max. PV input voltage: 600V
- MPPT Voltage Range: 80 ~ 550V
- Max. PV input current per MPPT: 28/14/14
- MPPT & Strings: 3 (MPPT 1: 2 Strings; MPPT 2&3: 1 String)
- Max. Continuous AC Out current : 47.5A
- CEC efficiency (PV): 97%
- Enclosure rating: Type 4X
- Cooling Method: Natural convection
- Display: LED, App, Website
- Communication Protocol: WiFi, 4G, LAN
- Interface: CAN2.0, RS485, Meter, CT, ISO alarm, SUNSPEC
Shipping and Packaging- The battery can only ship via freight truck
DownloadDatasheet
FoxESS PowerQ-datasheet-US-Mainland-V1.0-2.27.pdf
FoxESS_AIO_H1_AC1_Datasheet_US_Mainland_-compressed.pdfUser Manual
Fox-ESS-PowerQ-User-Manual-ESSwith-hub-V1.0a.pdfCertification
Fox_PowerQ_UL9540.pdf
Fox_PowerQ_UL1973.pdf
Fox_PowerQ_UL1741.pdf
Fox_CoFC_80112280_EN.pdfHUB &WiFi
Fox Hub-G2 Datasheet
Fox Smart WiFi Datasheet
FoxESS Cloud User Manual
