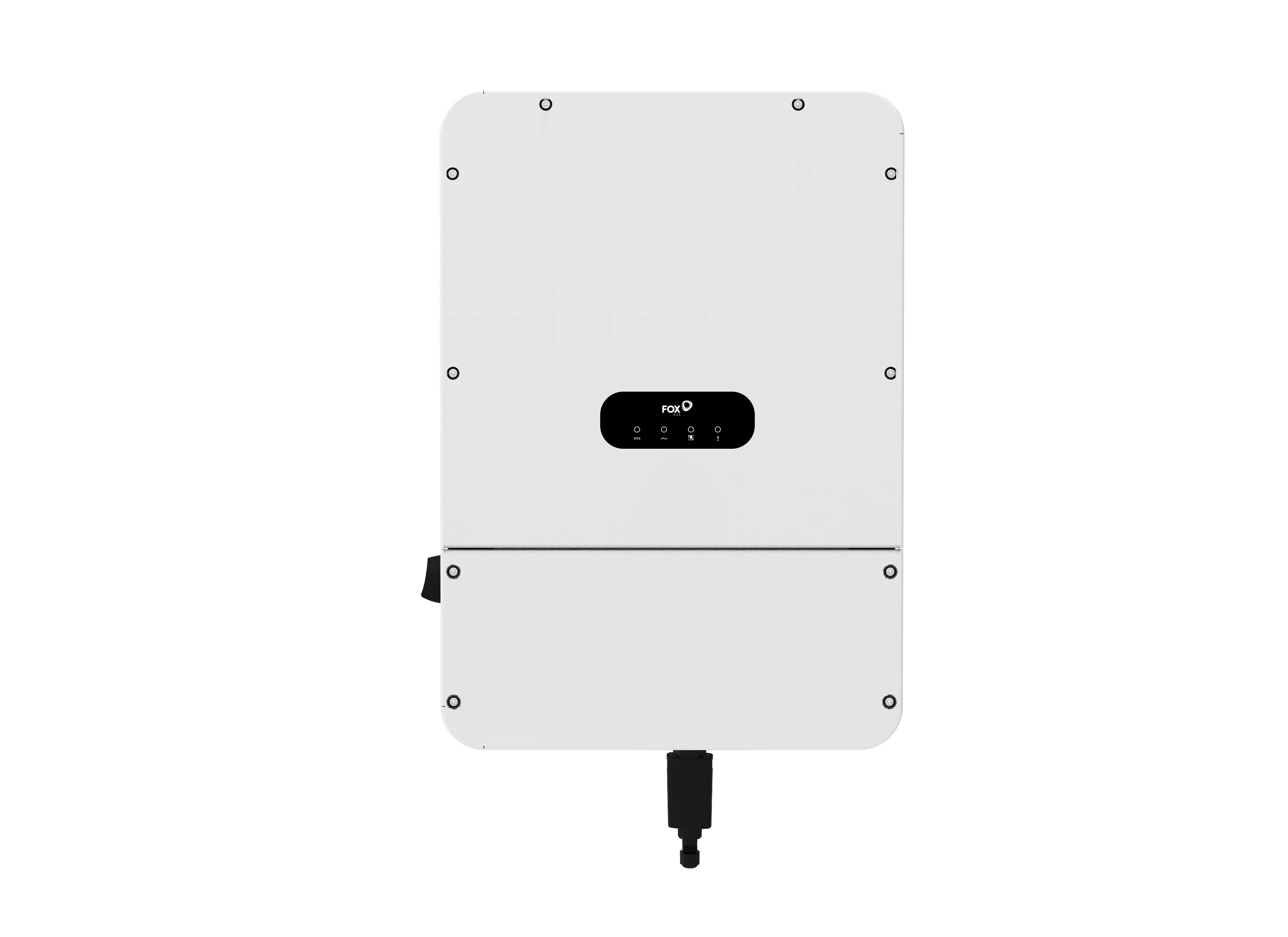

THE FOX H1-5.7-US 5.7kW Split-Phase Pre-Wired Hybrid Inverter is an all-in-one system with 2MPPT, WiFi included, a display with remote monitoring, and APS/Tigo transmitter integrated, that is simple to install to a Grid-tied, Off-Grid, or Battery Storage solar system while being able to manage power from Solar, Battery, Grid, Loads, and Generator.

Manufacturer FOX ESS
Type Split-Phase-Hybrid
AC Power 5.7W
Max PV Input Power 11.4kW
MPP Trackers 2
MPPT Voltage Range 204~500V
Max Efficiency 97.6%
Warranty 12.5 years
Communications: CAN2.0, RS485, SUNSPEC / APP, Website
Certificate UL1741, UL1741SA, UL1998, UL1699B, CAS C22.2

Product Features:

• Easy Installation: flexible configuration, plug-and-play setup
• High Voltage: Compatible with high-voltage batteries for maximum round-trip efficiency
• NEMA 4X: Engineered to last with maximum flexibility, suitable for outdoor installation
• Remote Monitoring: Monitor your system remotely via the smartphone app or web portal
• DC and AC Coupling

Product Specifications:
PV INPUT

• Max PV Input Power: 11.4kW
• Max Input Voltage: 600V
• MPPT Voltage Range: 80~550V
• Max Input Current: 28/14A
• Max Short-circuit Current: 44/22A
• MPP Trackers: 2
• Strings per MPP Tracker: 2/1

Battery Connection

• Battery Voltage Range: 85~460V
• Rated Battery Voltage: 360V
• Max Continuous Charge / Discharge Current: 50A
• Max Continuous Charge / Discharge Power: 8.55kW/6.27kW for DC 5.7kW/6.27kW for AC
• Max Discharge Current: 60.0A

 AC INPUT AND OUTPUT (GRID)

• Max AC Input Power: 5.7kW
• Max AC Input Current: 24A
• Max Output Current: 23.8A
• Rated Grid Voltage: 240V

GENERAL DATA

• Dimensions(H*W*D): 25.2*17.7*9.6 inch( 640*450*244mm)
• Weight: 83.3lbs (38kg)
• Installation: Indoor, Outdoor, Wall-mounted
• Monitoring Module: WiFi+ LAN, 4G(Optional)

Download

Datasheet

Fox H1-7.6-US 7.6kW Hybrid Inverter

User Manual & Installation Guide
Fox H1-5.7-US User Manual
Fox H1-7.6-US Quick Installation Guide

Certification
Fox H1-7.6-US UL1741
Fox ECS4000-UL-9540A

HUB &WiFi
Fox Hub-G2 Datasheet
Fox Smart WiFi Datasheet
FoxESS Cloud User Manual

About FOX ESS

FOX ESS is a leading provider of advanced energy storage solutions that empower customers to optimize their energy usage, reduce their carbon footprint, and enhance their energy independence. Founded in 2016, 15% of FOX ESS staff are engineers with a core R&D center base in Shang Hai. FOX ESS has developed a wide range of energy storage products and services that cater to the needs of various industries, including residential-use, utilities, commercial, and industrial customers. FOX ESS is committed to delivering innovative, reliable, and cost-effective energy storage solutions that meet the evolving needs of the energy market. With a global team of experienced engineers and energy experts, the primary markets of  FOX ESS include Germany, Italy, the UK, Brazil, Poland, and the US.
